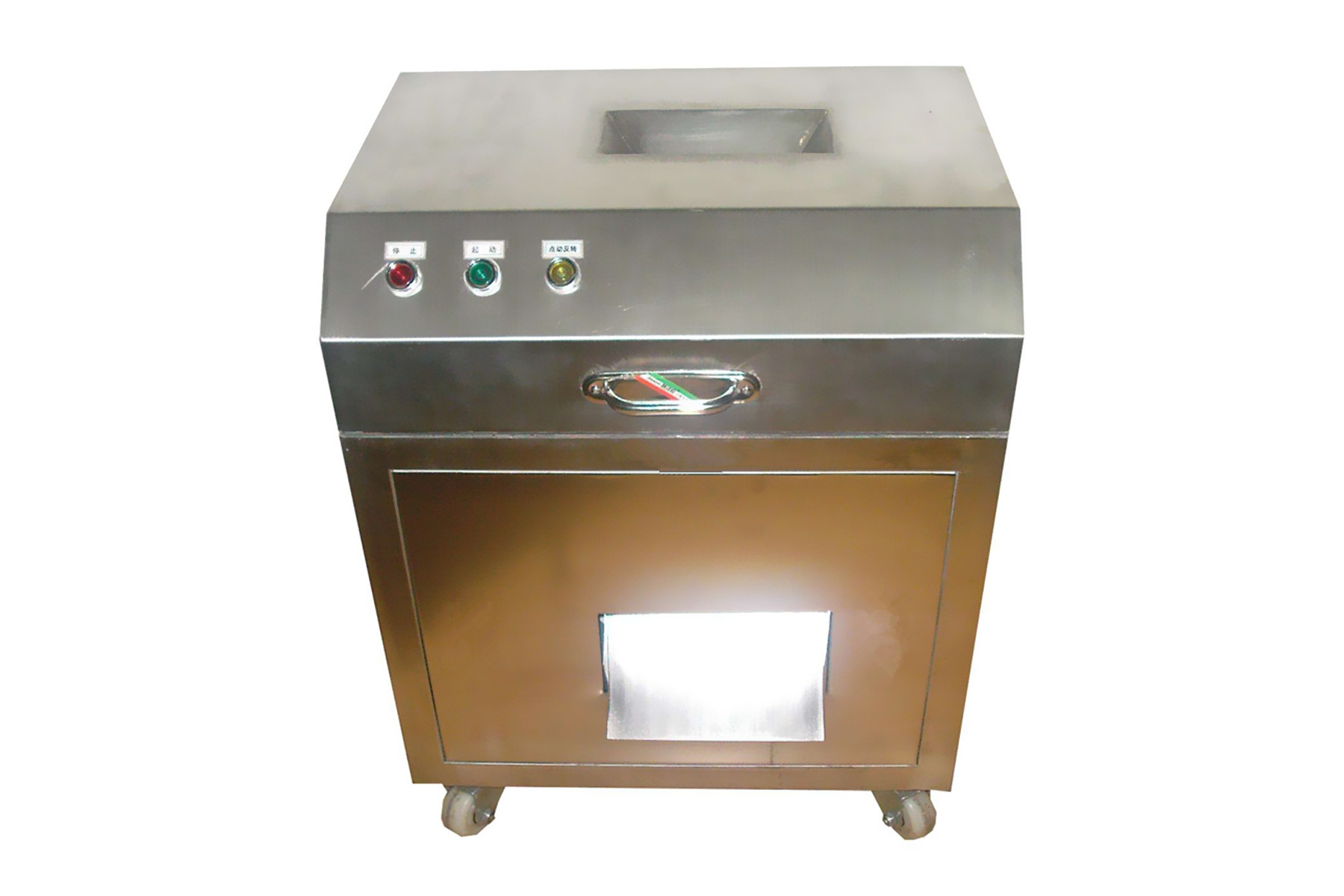

QS-5 Mini Tobacco Cutting Machine
QS-5 Mini Tobacco Cutting Machine is developed by us to meet small capacity requirements for lab & family purposes. We are able to customize the cutting knife set to cut tobacco leaf into 0.8-2.0 mm tobacco strips. Equipped with a 1.1 KW motor, QS-5 Mini Tobacco Cutter is able to cut tobacco leaf easily with a production yield of 20 kgs/h.
QS-5 Mini Tobacco Cutting Machine is consist of a cutter assembly, inverter, motor, transmission, chassis and panel. The machine can cut tobacco leaf and stem. To get more cutting effect, we advise that you take out of the big stem.
This mini cutter is easy to operate and maintain. The machine is under a one-year warranty since machine’s buy-off. To safeguard your production, we will supply you with high-quality cutting knives to ensure your production consistency.
Machine Technical Specifications
Cutting Width | 0.8mm / 1.0mm | Machine Capacity | 20-50 kg/hr |
---|---|---|---|
Number Of Knives | 10 pcs | Rotary Drum Speed | 0-60 rpm |
Width Of Feeding Entrance | 260 mm | Control System | Digital Converter |
Machine Power | 380V, 50HZ, 1.1KW | Machine Size | 720mm*430mm*800mm |
Machine Total Weight | 140 kgs |
